Eclectic Duogen-3 water - wind generators:

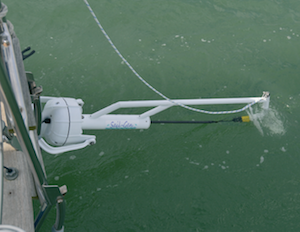

The New Sail-Gen Dedicated Water Generator for Cruising Yachts, a unique and patented water generation system for cruising yachts. Producing electricity on passage is an increasingly major consideration for the cruising yachtsman.

• Water mode on passage
• Minimal loss of boat speed
• Proven in all sea states
• Supplied complete with mount hardware
• No tower needed
• High strength carbon fibre drive shaft
• Enhanced castings and mouldings
• Available in 12 and 24 volts versions
• Self-furling protection in high winds
• Robust construction

Click here to send an email for nearest dealer and quote
With on-board refrigeration, autopilot, radar and many other electrical appliances, typical power consumption when under way can be around 200 amp hours per day or more.
As batteries should not be routinely discharged beyond 50% of their capacity, this level of load will flatten a 400 amp hour battery bank in 24 hours necessitating many hours of running an engine or generator daily to re-charge.
The Sail-Gen water generator dispenses with this by producing electricity as you sail and is easily capable of matching or exceeding the yacht’s power consumption.
The Sail-Gen shares the same operating principal as the DuoGen’s water mode, which is well proven over hundreds of thousands of sea miles. The Sail-Gen has the same geometry as the DuoGen and also utilises the same alternator, water impeller and drive train.
The Sail-Gen comprises a rigid welded aluminium frame with carbon fibre drive shaft and cast alloy impeller. It is compact in size and both reliable and efficient in operation. At typical passage speeds (5 – 6 knots) the Sail-Gen is capable of matching power consumption, freeing the owner from engine runs to charge batteries.

• The Sail-Gen is direct-drive, i.e. 1:1 ratio impeller to alternator. There is no gearbox to wear and add friction.
• The Sail-Gen’s alternator is not submerged, and is therefore less liable to failure through water ingress.
• The Sail-Gen’s running depth is controlled by a ‘hydro foil’ or ‘dive plane’. This means that the water impeller flies through the wave action at a constant depth and is not directly affected by the pitching movement of the yacht, as occurs with the ‘outboard leg’ type generator.
• The impeller running depth can be optimised by a simple adjustment of the dive plane angle.
• The dive plane prevents the water impeller from surfacing in all but the most extreme situations.
• The Sail-Gen dive plane is active, and moves to a positive angle as tension is applied to the recovery lanyard. This makes recovery simple and easy, regardless of boat speed.
• An impact wire can be fitted to move the dive plane positive in the event of a collision with floating debris. This allows the Sail-Gen to ride over the obstructions, minimising any damage.
• The Sail-Gen is built using high quality, corrosion-resistant materials, including cast aluminium impellers, carbon fibre driveshaft and a welded aluminium frame. The aluminium is hard anodised, followed by a polyester powder coat.
• The slow speed, permanent magnet alternator is robust, highly efficient and well proven. Featuring stainless steel shaft and bearings, powerful ferrite magnets and heavy copper windings, this unit is capable of sustained outputs in excess of 500 watts.
• The Sail-Gen is supplied complete with an alternator yoke and ‘c’ bracket. Together, these form the gimballed mount for the Sail-Gen and allow the unit to pivot both vertically and horizontally when deployed.
• The ‘c’ bracket should be attached to the yacht within 500mm of the centre line, and with height options of either 392mm or 532mm above the static water line. The ‘c’ bracket can be through-bolted to the transom. In some cases additional brackets may be required to facilitate the installation.
• In its ‘parked’ position when not in use, the Sail-Gen is held in a vertical position by a frame clip supplied with and integral to the mount hardware.
• The Sail-Gen is supplied in either 12 or 24 volt variants. A standard 280mm diameter impeller is available for yachts with passage speeds up to 9 knots. A high-speed 240mm diameter impeller is recommended for boats capable of speeds up to 15 knots.
• To prevent battery damage through overcharging, we recommend that a charge regulator forms part of the installation. This should be a ‘dump’ type regulator rated at a minimum of 40 amps at 12 volts.
Drag and the resulting speed loss from water generators are often over-stated. Drag from the Sail-Gen is less than 15 kg at 6 knots, and typical boat speed losses at that speed are in the order of a tenth of a knot or less.
• The Sail-Gen weighs 16.7 kg excluding mounting.

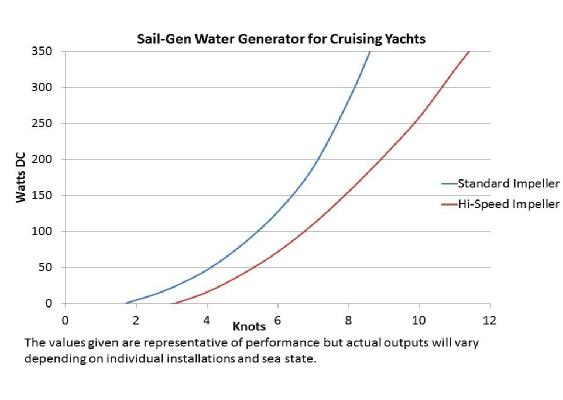

Amazing charge current in water mode:
  Download installation information
Regulators for your Eclectic Sailgen:

(cut front panel to show inside)

Diversion load controller for 12V or 24V version:
We recommend that your turbine is installed together with an Eclectic controler to prevent battery damage through overcharging.

Optional Ventilated box with integrated or remote stop switch:
We can Install the 6TB charge controller and resistors in our enclosure for a neet and simple installation. You can stop the generator with our stop switch/breaker, in the box or remote.

• Anodized Aluminum ventilated box
• Include stop switch in or remote
• Small size 17" x 10" x 3", 43 cm x 20,5 cm x 7,8 cm
• All marine grade hardware

More info on Ventilated box with stop switch panel
