Small house or cottage DC distribution / controller protection panels

Basic DC branch circuits, small inverter disconnect, along with all controllers protection
and shunts in One Single Box, our "RESID" DC Controller / Distribution Panels is the solution.
Designed for easy installation of controllers, load distribution, small inverter and shunts in small residential and cottage. It just fill a market niche for small affordable systems, left by big systems manufacturers. Customize a standard panel with your own specified breakers, busbars, fuses, monitor shunts and other electrical devices.

DC distribution and controlers outputs are connected together on one Positive Busbar via UL489 DIN Rail mount breakers and Negatives on supplied busbar. DC side of small Inverter (up to 125A) disconnect with UL489 breakers for code compliant installation.


Main features:
• Easy installation of many controllers and DC distribution to branch circuits on positive common bus
• Group all DC wiring and devices in and around one single box
• Inverter disconnect in the panel
• Main turbine brake option
Shunt position and fusing possible on 12" x 12" panels.
• Different sizes of knockouts all around panel
OPTIONS:
• Breakers Interlock for wind turbine brake

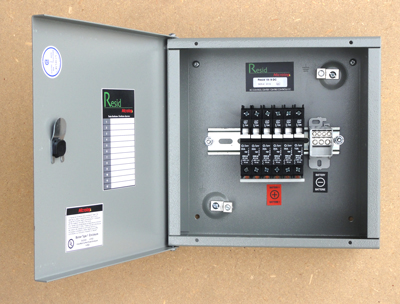

(Shown with all DIN breakers installed)

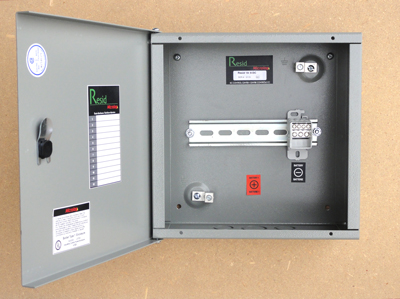

Standard Cottage Resid 10-9DC basic panel:
Features:
• Easy installation of controllers on positive common bus
• DC distribution up to 6 branch circuits on positive common bus
For up to 9 position DIN Rail breakers
• Small Inverter breaker disconnect up to 63A
Positive Busbar for up to 6 branch breakers
Negative Busbar 6 box lugs
• 2 Grounding box lugs
• Polyurethane Gray painted strong Steel enclosure
• Different sizes of knockouts all around panel
• Hinged door with sloted lock
• Standard breakers ID and safety labels
• Two year limited warranty
Dimensions: 10" high x 10" wide x 4" deep
25 cm high x 25cm wide x 10cm deep


Standard Cottage Resid 12-12DC or 12-1224 DC basic panel:
Features:
• Easy installation of controllers on positive common bus
• DC distribution up to 12 branch circuits on positive common bus or 2 bus, one 12V and one 24V
For up to 12 position DIN Rail breakers
• Small Inverter breaker disconnect up to 63A
Positive Busbar for up to 12 branch breakers
• 2 Negative Busbars 6 box lugs
• 2 Grounding box lugs
• Polyurethane Gray painted strong Steel enclosure
• Different sizes of knockouts all around panel
• Hinged door with sloted lock
• Standard breakers ID and safety labels
• Two year limited warranty
Dimensions: 12" high x 12" wide x 4" deep
30 cm high x 30 cm wide x 10cm deep
