Microlog Deluxe Panels:
Microlog DC and AC Deluxe Distribution Panels
offers the Best Quality you can get for your boat or RV
>>> INCLUDE STANDARD Red Backlight for DMM-1 display and labels
Our Deluxe DC or AC distribution panels with a clean look, attractive design and...No apparent screws! We use circuit breakers holding bars and screws are all covered with recessed polycarbonate facings and labels.

Our famous DMM-1 Battery Monitor is integrated in the main DC panels for informative DC system Voltages and Separate Charge/DischargeCurrent flow.

Include All indicator lignts for status of each circuit, standard marine grade Carlingswitch breakers, prime quality epoxy coated Aviation Grade Aluminum panels, labels backlight, copper bus bars, Irridite aluminum or Nylon standoffs, 316 grade stainless steel screws will provide years of service and protection.
All at a very competitive pricing, Best Quality/Price ratio on the market, with just the authorized reseller-installer in the line.

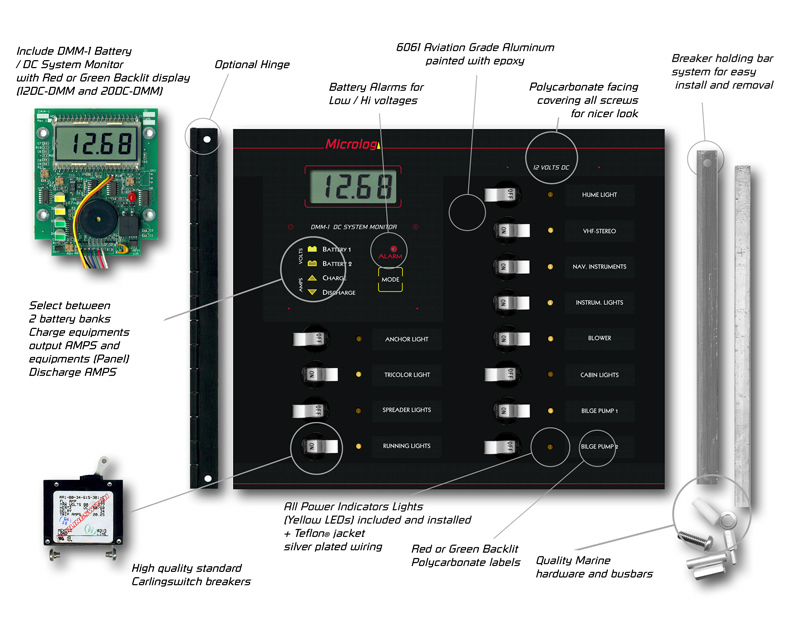

Look and compare Deluxe Microlog Panels features:
• Integrated DC Voltage / Current monitoring with the DMM-1
• Small physical format for easy installation or refit
• Powder Epoxy or Polyester paint coated 6061-T6 Aviation Aluminum
Our panels comes with standard Marine Grade Carling breakers and you can exchange with your choices of breakers values to build your panels and fit your needs.
• Special Breaker holding bar system for easy add or removal
• Recessed Polycarbonate Lexan facings hiding screws for nice look
• Red Backlight (Green optional) for DMM-1 display and labels
• Optional left side hinge
• Include all Power Indicators Yellow lights (LEDs)
• Integrated Negative or Neutral+Ground (AC) Bus Bars
• Silver plated wiring with Teflon jacket
• Stainless steel hardware for marine environment
• Easy to install and operate
• Two year limited warranty
• Best Quality / Price ratio on the market

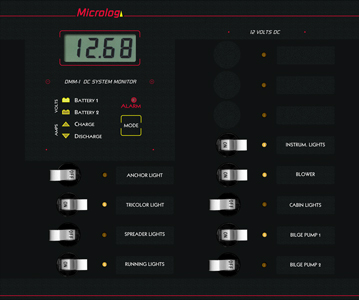

12DC-DMM Deluxe Panel Includes:

DMM-1 DC System Monitor
9 x Breakers, 4-5A, 5-10A, 1-15A
3 x spare positions
3 x Bus bars for connections
12 yellow indicator lignts
Backlight on display and labels
30 Standard DC labels kit
Dimensions: 7.5" x 9"

OPTIONS:
3 extra breakers with values of your choice
SWK-225 or SWK-205 for AMPs measurement (see below)
HG-7 left side Hinge

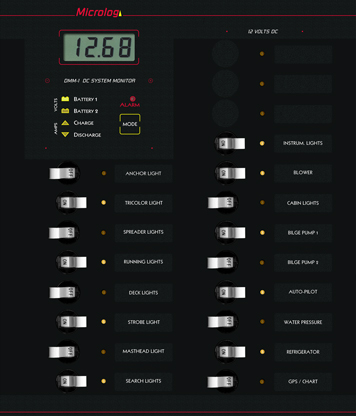

20DC-DMM Deluxe Panel Includes:

DMM-1 DC System Monitor
17 x Breakers, 8-5A, 8-10A, 1-15A
3 x spare positions
3 x Bus bars for connections
20 yellow indicator lignts
Backlight on display and labels
Polyester powder paint
30 Standard DC labels kit
Dimensions: 10.5" x 9"

OPTIONS:
3 extra breakers with values of your choice
SWK-225 or SWK-205 for AMPs measurement (see below)
HG-10 left side Hinge


Panel Accessories and Options:
Extra breakers with values of your choice:
We use standars Carling Technologies A-Series hydraulic/magnetic circuit breakers. They are compact and temperature stable designed for precision operation in OEM markets requiring general purpose as well as full load amp applications.
Our panels comes with standard 15A breakers but you can exchange with your choices of breakers values to build your panels and fit your needs.

0.02-30A @ 277VAC, 80VDC
31.0-50A @ 125/250VAC, 80VDC
UL recognized, CSA
Choose additional breakers and replace included
standard breakers with your Amps vatues:
BK-5: 5 Amps marine breaker
BK-10: 10 Amps marine breaker
BK-15: 15 Amps marine breaker
BK-30: 30 Amps marine breaker
BK-50: 50 Amps marine breaker
BK-2-30: Dual 30 Amps marine breaker
BK-2-50: Dual 50 Amps marine breaker
Hinge option:

Anodized Black Aluminum Hinge will fit panels on left side.
HG-7: Hinge Option for 12DC-DMM Panel.
HG-10: Hinge Option for 20DC-DMM Panel.

SWK-205 Shunt and Wiring kit for DMM-1:

The SWK-205 Shunts and Wiring kit is required if you need to measure current up to 135 Amp. Continuously.
Users with alternators over 135A and 1800-2000W inverters should use SWK-225.

Kit includes:
-Dual 200 Amp. (135 Amp. continuous) Marine Grade Shunts
-25 feet PVC jacketed, tinned, flexible marine grade wire for exact calibration of your DMM-1 instrument
-Connectors to shunts and battery poles

Dual 200 Amp. shunts which are made with naval specification brass.

Shunts Specifications:
  • Continuous Current limit:
135 Amp.
  • Surge limit(25°C):
200 Amp.,10 sec/min. MAX
1000 Amp. Surge,1 sec/min. MAX

(Derating as ambianttemperature rise)
  • Size:
5.50" L. x 1.50" W. x 1.50" D
14,0 cm x 3,7 cm x 3,7 cm.
SWK-225 Heavy-Duty Shunt and Wiring kit for DMM-1:

The SWK-225 Shunts and Wiring kit is required if you need to measure current up to 200 Amp such as Hi-Amp alternators or 1800-2000 W. inverters. Millitary specs with silver soldering of plates and ROHS

Kit includes:
-Dual 200 Amp. Heavy Duty Marine Grade and Military spec shunts
-25 feet PVC jacketed, tinned, flexible marine grade wire for exact calibration of your DMM-1 instrument
-Connectors to shunts and battery poles


Dual 200 Amp. shunts which are made with naval specification brass.
Shunts Specifications:
  • Continuous Current limit:
200 Amp.
  • Surge limit(25°C):
280 Amp.,15 sec/min. MAX,
2000 Amp. Surge, 1 sec/min. MAX

(Derating as ambiant temperature rise)
  • Size:
7.00" L. x 1.70" W. x 1.50" D
17,9 cm x 4,5 cm x 3,9 cm.
Spares In-Line Ring Connector-Fuses:
Ring-Connector-Fuse are required to protect battery wiring to the DMM monitor for your own safety. We include them with your DMM but it is good to have one spare.
